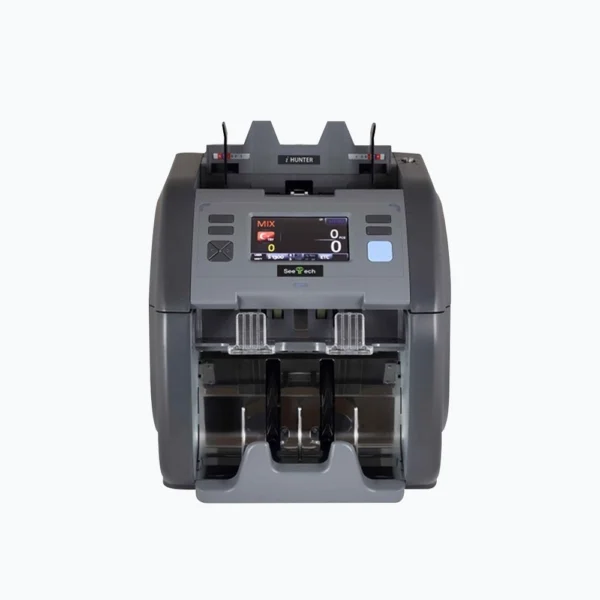

HUNTER iH-110

CFA 0

Key Features:

  • High-speed image processing technologies
    • Full Color Dual CIS
    • Capture and Record of OCR, MICR and Barcode / Deposit full color images
    • Can be installed more than 40 currencies
    • Mix & Multi currency mode (Count mixed currencies and automatic recognition)
  • Advanced sensor technologies
    • Equipped with range of counterfeit detection technologies.
    • Reliable fitness sorting
    • Excellent tape detection performance
  • Remote monitoring system by ‘SIM’
  • User-friendly system
    • 2 Teller mode indicator and Multi user mode available
    • 4.3” Full color touch screen
    • Easily look up the all sensor data
    • Simple and easy operation
    • Easy maintenance
Catégories : , Étiquettes : , Marque :
Currency More than 40 currencies, up to 16 currencies(Mix & Multi)
Operating Speed (can be installed more than 40 currencies) – Value Counting with counterfeit detection – Max 1300 NPM
– Fitness sorting with counterfeit detection
– Capture and Record : OCR, MICR, Tickets, etc. – Max 1000 NPM *Note per minute
– Capture and Record : Full color image with OCR
Pocket Capacity Hopper iH-110/iH-110S/iH-110B: Max 500 Notes, iH-110F/iH-110FS: Max 1000 Notes
Reject Pocket – 60 notes(Max 100 notes)
Stacker – 200 notes(Max 300 notes)
Display 4.3” Full Color LCD Touch Screen
Mode Mix(Face, Orientation) / Different Denomination(Face, Orientation) / Count / Serial No. / Fitness / etc
Dimensions(W/D/H) iH-110/iH-110S/iH-110B: 300 x 320 x 315mm
iH-110F/iH-110FS: 300 x 320 x 345mm
Weight iH-110/iH-110S/iH-110B: 13kg
iH-110F/iH-110FS: 14.5kg
Interface LAN(Giga), USB(H), USB(S), RS232C x 2
Power Supply 100 ~ 240V ±10%, 1.2A ~ 0.6A, 50/60Hz
Sensor info. Full Color dual CIS: 8 Images, IR transmission, IR reflection, RGB
Full line magnetic sensor (16 Channel)
Thickness(Tape) /Double detection sensor (12 Channel / 2 Channel)
UV Reflection(4 Channel), Transmission(4 Channel), Fluorescence (4 Channel)
Options External LCD display / OSD(On Screen Display : Video surveillance system) / Thermal printer
