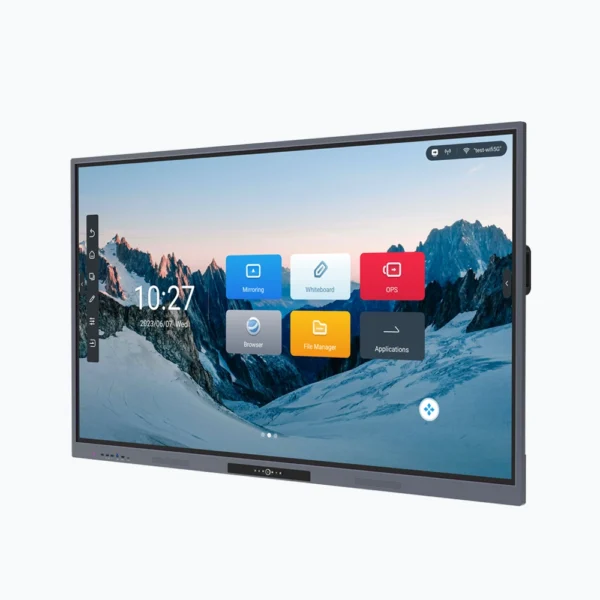

Prolynx – 86 Inch 4K Smart Interactive Flat Panel – PL-IF86K
CFA 0
Key Features:
- 4K: 3840*2160 Ultra High Resolution
- Support Android 11.0 operating system, optional OPS computer, which realize Android and Windows dual system available
- High-precision, low touch height (1mm) infrared touch, excellent touch and writing experience
- Support anti-miss-touch, whiteboard writing can also support large and small pen recognition while anti-miss-touch happen
- Anti-glare tempered glass is used, the air gap between the tempered glass and the display screen is ≤0.8mm, it reduce
- the refraction of light and greatly improve the visual experience of viewing from a wide viewing angle
- 3 front USB3.0 ports, dual system automatically follow
- Camera & Mic Built in 8 MP Camera * 8 Array Mic
- Front shortcut key one-key direct access to all common functions
- Support user-defined home page icon, smart floating ball, gesture operation
| Screen Size | 86” |
|---|---|
| Image Scale & Resolution (Pixels) | 16:9 (3840*2160) |
| Backlight Type, Brightness | DLED, 350cd/m2 (typ.) |
| View Area (mm), Viewing Angle | 1895.04 (H) * 1065.96 (V) |
| Sensing Type | Infrared Touch Frame |
| Surface Protection | 4mm Toughened Glass |
| Infrared Touch | 20 Points |
| Response Time | ≤10ms |
| Systems | Android/Windows |
| CPU/GPU | USB Free Drive |
| Resistance to Light | Quad Core ARM Cortex-A73*4 + Quad Core Cortex-A53*4 |
| GPU | ARM Mali-G52*8 |
| RAM | 8GB |
| ROM | 128 GB |
| Type-C | x1, Power Output: 5W (5V/1A) Up to 3840×2160@60Hz Support Fully Functional Mode Interface: Type-C |
| USB | x3, Version: USB3.0 Interface: Type-A |
| Touch-USB | x1, Touch Interface for HDMI Interface: USB2.0 Type-B |
| HDMI IN | x1, Version: HDMI2.0 Up to 3840×2160@60 Hz |
| Power Requirements | AC 100-V-240V~50/60 Hz |
| Power Consumption without OPS | ≤450W |
| Standby Condition | ≤0.5W |
| Audio Output Power | 2x15W |
