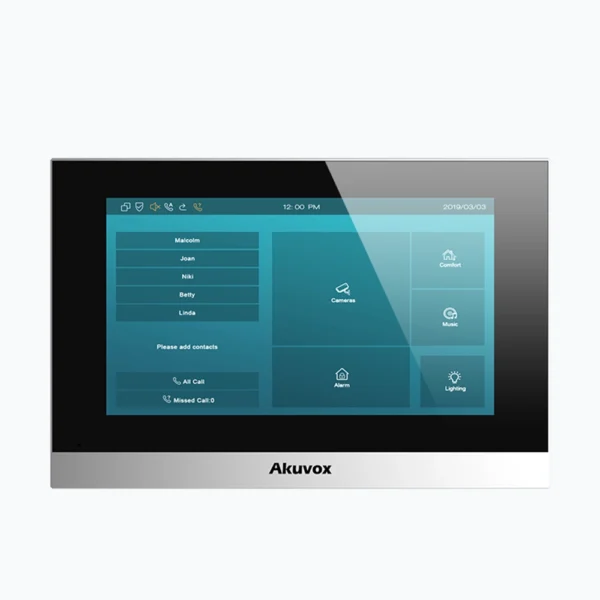

Akuvox – IP Intercom (Indoor Unit) – C313S
CFA 0
Akuvox C313 is a 7″ indoor monitor. Its slim body fits into limited space and offers a fat stack of features. It is typically used in apartments.
Key Features:
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
| Physical & Power | : |
|---|---|
| RAM / ROM | 64MB / 128MB |
| Display | 7 Inch TFT LCD |
| Screen | 7 Inch capacitive touch screen |
| RS485 port | Support |
| Relay out | 1 |
| Bell in | 1 |
| I/O | 8 |
| Microphone | -58dB |
| Speaker | 4Ω / 2W |
| Ethernet Ports | 2xRJ45, 10/100Mbps adaptive |
| POE | 802.3af Power-over-Ethernet |
| Power | 12V DC Connector |
| Installation | Wall-mounted & Desktop |
| Dimension | 200.2×132.2×27.2mm |
| Working Humidity | 10~90% |
| Working Temperature | -10°C ~ +45°C |
| Storage Temperature | -20°C ~ +70°C |
| Touch Screen & Display | : |
| Display Mode | Normally white, Transmissive |
| LCD Size | 7inch (Diagonal) |
| Resolution | 800×480 |
| Contrast ratio | 500:1 |
| Luminance | 220 cd/m² |
| Viewing Angle | 50° Left, 50° Right, 40° Upper, 50° Lower |
| Touch Screen | Projected capacitive |
| Networking | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261), Narrowband audio codec: G.711a, G.711μ, G.729, Broadband audio codec: G.722, DTMF: Out-of-band DTMF (RFC2833), SIP Info, Echo Cancellation |
| Video | Streaming formats: H.264 |
