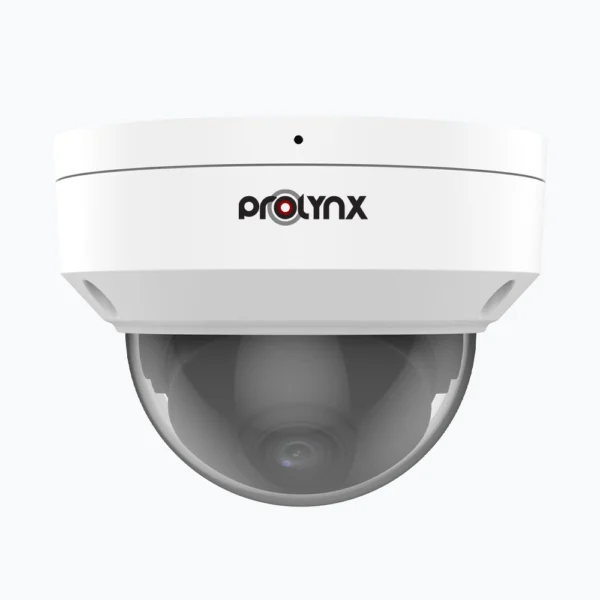

Prolynx – 2MP Fixed Dome Network Camera – PL-2NDC41
CFA 0
Key features
- High quality image with 2MP, 1/2.7”CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MPEG
- 2.8 mm Lens
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
| Image Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS |
|---|---|
| Day/Night | IR-cut filter with audio switch (ICR) |
| Lens Type | 2.8mm@F2.0 |
| Adjustment Angel | Pan: 3° to 360° |
| Field of View (H x V x D) | 112.9° * 59.1° * 121.2° |
| Minimum Illumination | Colour: 0.01 lux (F2.0 AGC ON), 0 lux with IR |
| IP Range | Up to 3m (98ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps~6144 Kbps |
| Frame Rate | Main Stream: 1080P (1920*1080) Max 30fps: 720P (1280*720), Max 30fps, Sub Stream: 720P (1280*720) Max 30fps; D1 (720*576) Max 30fps; 640*360, Max 30fps |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD, up to 128GD |
| Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMPT, QoS, SSL/TLS, SNMP |
| Network | 1 * RJ45 10M/100M Base TX Ethernet |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Network Storage | ANR,NAS(NFS) |
| Power | DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 5.0W |
| Working Environment | -30°C ~ -60°C (-22°F ~ -140°F), Humidity ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ -60°C (-22°F ~ -140°F), Humidity ≤95% RH (non-condensing) |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimension (Ø x H) | Ø 109 x 83mm (Ø 4.3″ x 3.3″) |
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
