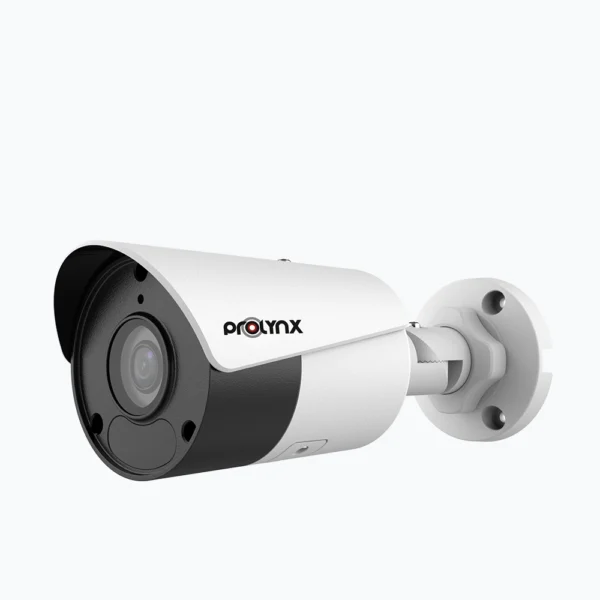

Prolynx – 4K Mini Fixed Bullet Network Camera – PL-8NBC40
CFA 0
Key features
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 GB Micro SD card
- Support PoE power supply
- 3-Axis
| Sensor | 1/2.7″, 8.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 2.8mm @1.6, Fixed-focal |
| Shutter | Auto/Manual, 1~1/100000 s |
| Min. Illumination | Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 50m (164 ft) IR range |
| Wavelength | 850nm |
| WDR | 120dB |
| Noise Reduction | 2D/3D DNR |
| Behavior Detection | Cross line, intrusion(based on human body detection), motion detection, tampering alarm, audio detection |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 4 areas |
| Edge Storage | Micro SD, up to 256GB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 6.5W |
| Dimensions (L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) |
| Weight | 0.45kg (0.99lb) |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) |
| Ingress Protection | IP67 |
