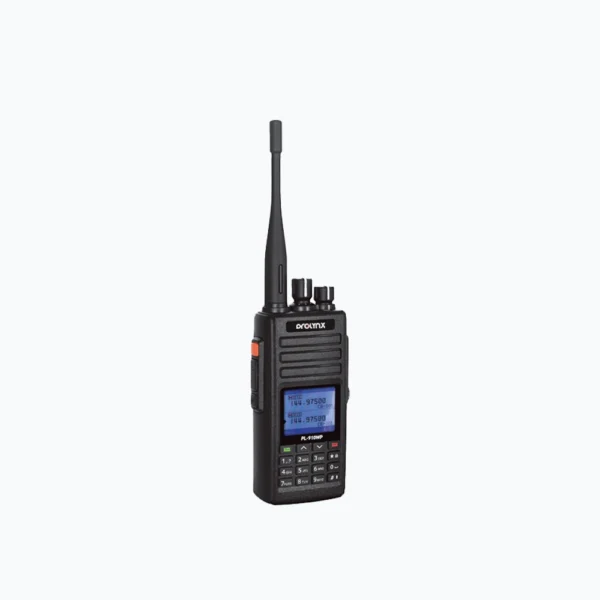

Prolynx – Two-Way Radio – PL-910WP
CFA 0
Key Features
- Dual Band, Dual Display, and Dual Standby
- 256 groups of memory channels
- Wide/Narrow Bandwidth Selection (25KHz/12.5KHz)
- Handfree VOX Function
- CTCSS/DCS Encoding and Decoding
- Non-Standard CTCSS/DCS input
- Auto Scan, ANI Function, PC Program
- FM Radio Receiver and 25 Memory Radio Stations
- 1750 Tone
- DTMF Decoding and Encoding
- Remote Stun, Kill and Activated
- Man Down
- 1.77 inch Color Display
- Emergency Alarm
- IP67 Water Resistant
| Frequency Range | 136-174MHz & 400-480MHz |
|---|---|
| Frequency Stability | ± 2.5 PPm |
| Channel Capacity | 256 Channels |
| Operating Voltage | DC 7.2 V |
| Antenna | High Gain Antenna |
| Antenna Impedance | 50 Ω |
| Mode of Operation | Same or Different Frequency Simplex |
| Dimension (H x W x D) | 120 x 55 x 33mm |
| Water Resistant | IP67 |
| RF Power | High ≤ 10W Low ≥ 5W |
| Modulation Type(Wide/Narrow Band) | 16K F3E / 11 K f3E |
| Max. Fr. Deviation (Wide/Narrow Band) | ≤ 5KHz / ≤ 2.5KHz |
| Adjacent Ch. Power(Wide/Narrow Band) | ≤ -65dB / ≤ -60dB |
| Spurious Power | ≤ 7μW |
| Pre-Emphasis Character | 6dB/ Each frequency doubling the increment |
| Modulated Noise | < -40dB |
| Current | ≤2.8A (10W) ≤ 1.8A (5W) |
| DCS/CTCSS Frequency Deviation | 0.6KHz ±0.15KHz, 0.4KHz ± 0.1 KHz |
| Intermediation Sensitivity | 8 ~ 12mV |
| Modulation Distortion | < 5% |
| Reference Sensitivity | -122dBm (12dB SINAD) |
| Audio Power | 1 W |
| Audio Distortion | < 5% |
| Blocking | ≥85 |
| Inter-Modulation (Wide/Narrow Band) | ≥60dB ≥55dB |
| Adjacent Ch.Selection | ≥65dB ≥60dB |
