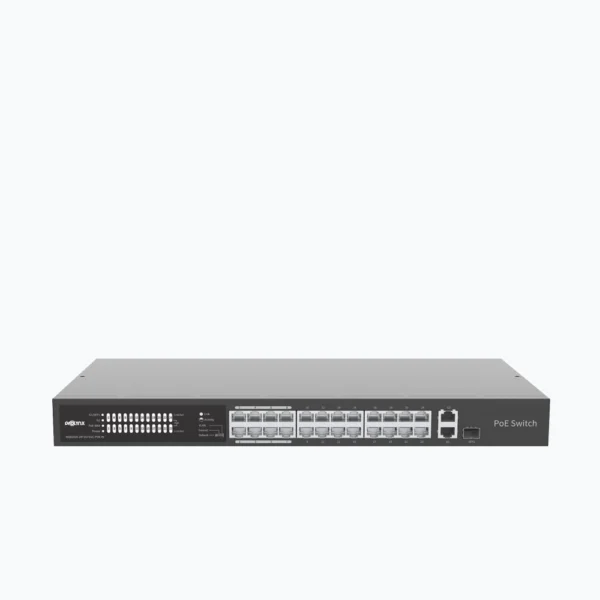

Prolynx – 24 PORT POE SWITCH – PL-24POE02UG
CFA 0
Key Features:
- Multiple working modes to address your business needs: Default (Normal mode), VLA N(Secure mode), EXTEND (Surveillance mode)
- Support Port Traffic Control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
| Ports | 24×100Mbps PoE ports, (RJ45) + 1×1000Mbps, Giga ethernet ports, +1×1000Mbps Combo ports |
|---|---|
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,I EEE802.3af,IEEE802.3at,IEEE802.3az |
| Switching Capacity | 8.8Gbps |
| Forwarding Performance | 6.55Mpps |
| Packet Buffer | 4Mbit |
| MAC | 16K |
| Dimensions (W×D×H) | 440*244.8*44mm |
| Weight | 2.93KG |
| Power Supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af (4/5+, 7/8-) |
| Max. PoE Power | Max capacity: 370W , Max capacity for single port: 30W |
| Prior Ports | 1~8 |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Operating Humidity | 10%～90% (noncondensing) |
| Storage Humidity | 5%~90% (noncondensing) |
| Indicator | Power: Steady on: AC input is normal, Off: No AC input PoE: Off: No PoE power supply, Steady on: PoE power supply is normal PoE-Max: off: The POE power supply power of the whole machine is less than 80% of the specification, Steady on: The POE power supply power of the whole machine is greater than 85% of the specification Link/Act: Off: No link, Steady on: Linked, Flashing: Transmitting data |
| Working Mode | Default (Normal mode): All ports can communicate with each other. VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
