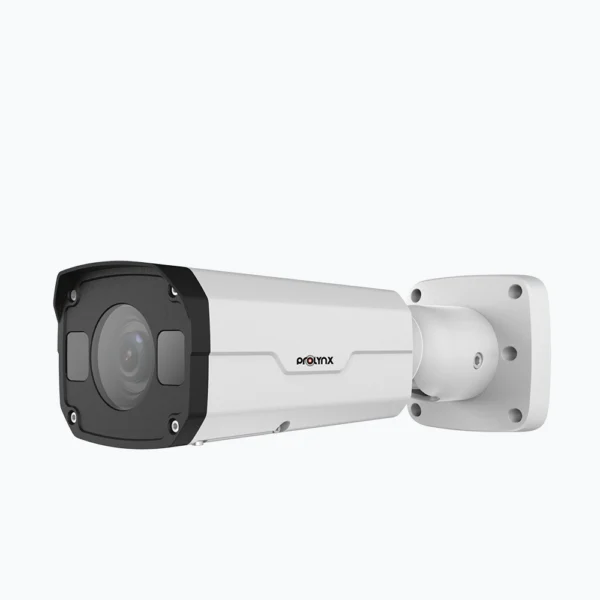

Prolynx – 4MP WDR Varifocal Bullet Network Camera – PL-4NBC35
CFA 0
Key features
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Triple streams
- Customized OSD
- 9:16 corridor mode
- IP67
| Sensor | 1/3″, 4 megapixel, progressive scan CMOS |
|---|---|
| Lens | 2.8~12mm @F1.4 |
| Angle of View(H) | 91°~27° |
| Zoom/Focus | Manual |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Min. Illumination | Colour: 0.02 Lux (F1.4, AGC ON), 0 Lux with IR on |
| IR Range | Up to 30m (98 ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >55 dB |
| WDR | Optical WDR (up to 120 dB) |
| Max. Resolution | 2592 × 1520 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps, 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Edge Storage | Micro SD, up to 128 GB |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF, API |
| Audio I/O | Audio cable, Input: impedance 35 kΩ; amplitude 2 V [p-p, Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 1 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| Power | 12 V DC, or PoE (IEEE802.3 af), Power consumption: Max 8W |
| Material | Cast aluminum |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Weight | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP67 |
