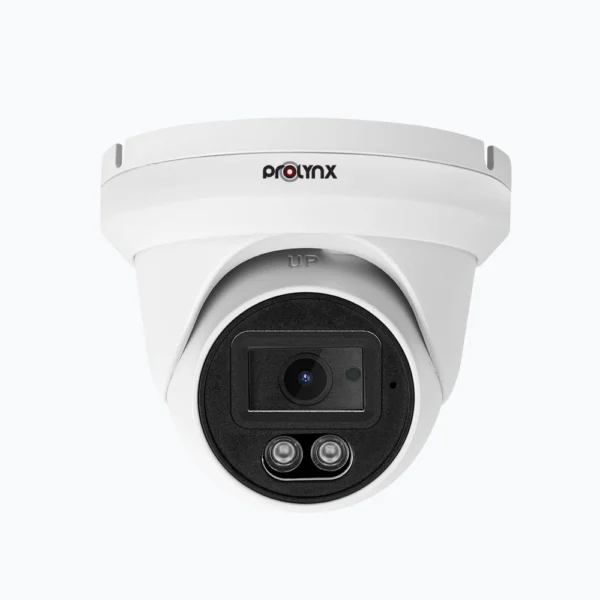

Prolynx – 2MP Hybrid HD Analogue Turret Camera – PL-AHD22D
CFA 0
Key Features
- 1/3″ Progressive Scan CMOS
- 3.6mm fixed lens
- Max 30fps@1080P
- Video transmission 300m
- IR distance up to 20m
- 2D DNR, DWDR, ICR, BLC, GLOBE, ATW
- Support AHD/TVI/CVI/CVBS Output
- IP66
| Sensor | 1/3” Progressive Scan CMOS |
|---|---|
| Lens | 2.8mm |
| Angle of View | H: 90.2°, V: 49.6° |
| Min. Illumination | 0.01Lux@(F1.2,AGC ON) |
| Day/Night | Auto / Color / B/W / Ext |
| IR Distance | up to 20m |
| IR LEDs | 2pcs |
| Up the Coax | Support |
| Lens Type | Fixed Focus |
| Iris | Fixed Iris |
| F Number | F2.2 |
| Resolution | 2MP (1920×1080) |
| Frame Rate | PAL: 25fps, NTSC: 30fps |
| Video Output | Support AHD/TVI/CVI/CVBS Output |
| Wide Dynamic Range | DWDR,OFF/ON |
| Gain Control | Auto |
| Noise Reduction | 2D DNR (Auto) |
| White Balance | Auto |
| BLC | Support |
| Power Supply | DC12V±10% |
| Power Consumption | Max. 4W (12V DC, IR ON) |
| Operating Temperature | -10 °C ~ 55 °C (14°F ~ 131 °F) |
| Operating Humidity | Less than 85% RH |
| Ingress Protection | IP66 |
| Certifications | CE/FCC |
| Material | Metal + Plastic |
| Dimensions | 111 × 95mm |
| Product Weight | 0.33 kg |
