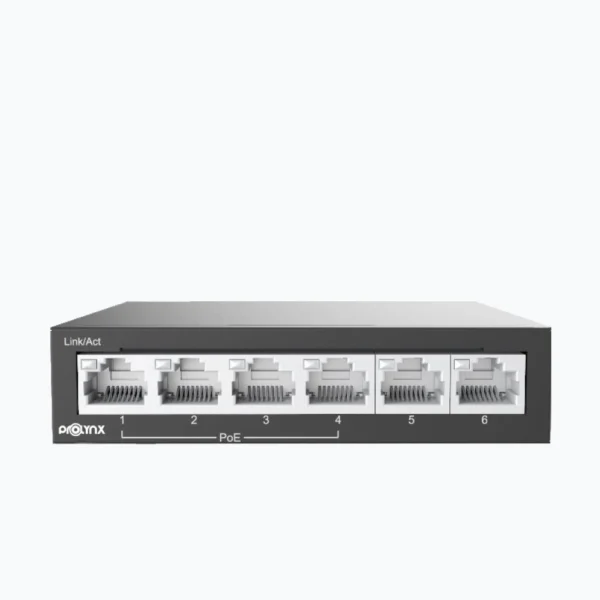

Prolynx – 4 Port POE Switch – PL-4POE02U
CFA 0
Key Features:
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND (Surveillance mode)
- Support Port Traffic Control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
| Ports | 6×100Mbps network ports, (RJ45), including 4 PoE ports |
|---|---|
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching Capacity | 1.2Gbps |
| Forwarding Performance | 0.90Mpps |
| Packet Buffer | 448Kbit |
| MAC | 1K |
| Dimensions (W×D×H) | 108*100*25.5mm |
| Weight | 0.19KG |
| Power Supply | DC 48/51V |
| PoE | 802.3at/af (4/5+, 7/8-) |
| Max. PoE Power | Max capacity: 60W , Max capacity for single port: 30W |
| Prior Ports | 1~2 |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Operating Humidity | 10%~90% (noncondensing) |
| Storage Humidity | 5%~90% (noncondensing) |
| Indicator | Power: Steady on: AC input is normal, Off: No AC input No PoE Indicator PoE-Max: off: The POE power supply power of the whole machine is less than 80% of the specification, Steady on: The POE power supply power of the whole machine is greater than 85% of the specification Link/Act: Off: No link, Steady on: Linked, Flashing: Transmitting data |
| Working Mode | Default (Normal Mode): All ports can communicate with each other. EXTEND (Surveillance Mode): Transmission distance up to 250 meters. |
