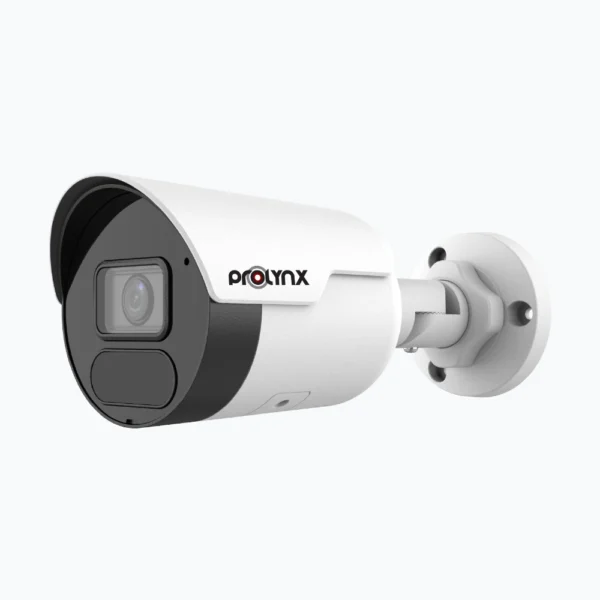

Prolynx – 5MP Fixed Bullet Network Camera – PL-5NBC55
CFA 0
Key features
- High-quality image with 5MP, 1/2.7″ CMOS sensor
- 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
- Easystar technology ensures high image quality in low illumination environments
- 120dB true WDR technology enables clear images in strong light scenes
- Supports 9:16 Corridor Mode
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 GB Micro SD card
- IP67 protection
- Supports PoE power supply
- 3-Axis
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 2.8mm @F1.6 |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination | Support Easystar: Colour: 0.003 lux ( F1.6, AGC ON) 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 50m (164ft) IR range |
| Wavelength | 850nm |
| WDR | 120dB |
| Noise Reduction | 2D/3D DNR |
| Behavior Detection | Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.0W |
| Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) |
| Weight | 0.45kg (0.99lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Power Interface | Ø 5.5mm coaxial power plug |
| Surge Protection | 4KV |
