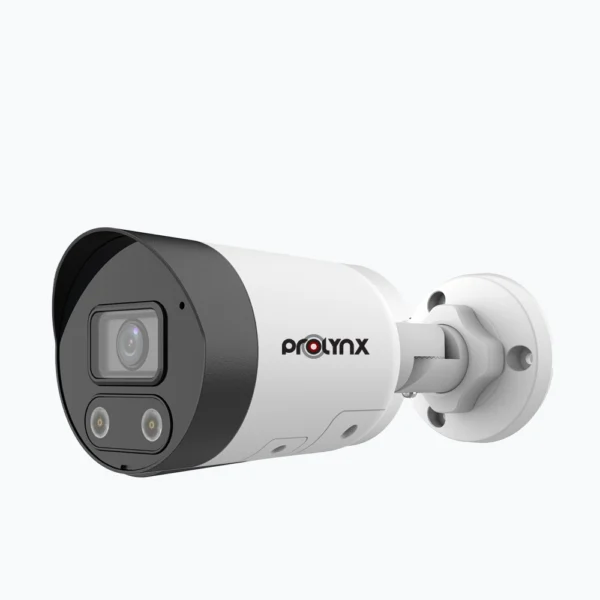

Prolynx – 4MP ColorVision Fixed Bullet Network Camera – PL-4NBC80
CFA 0
Key features
- High-quality image with 4MP, 3/1″ CMOS sensor
- 4MP (1520*2688)@20/25fps; 4MP (1440*2560)@20/25fps; 3MP (1296*2304)@25/30fps; 2MP (1080*1920)@25/30fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear images in strong light scenes
- Supports 9:16 Corridor Mode
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 GB Micro SD card
- IP67 protection
- 3-Axis
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 2.8mm and 4.0mm @1.6, Fixed-focal |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination | Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98ft) IR range |
| White Light Range | Up to 30m (98ft) white light range |
| WDR | 120dB |
| Noise Reduction | 2D/3D DNR |
| Behavior Detection | Cross line, intrusion(based on human body detection), motion detection, tampering alarm, audio detection |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 4 areas |
| Edge Storage | Micro SD, up to 128GB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP ONVIF (Profile S, Profile G, Profile T), API,SDK |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W |
| Dimensions (L × W × H) | 191×75×74mm (7.5”×2.9”×2.9”) |
| Weight | 0.41kg (0.90lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
