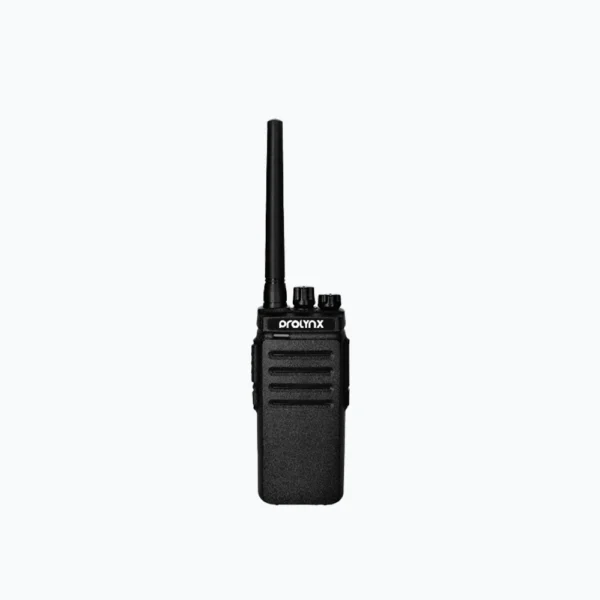

Prolynx – Professional FM Transeiver – PL-700
CFA 0
Key Features
- PMR 446
- TOT
- Scan
- Voice Prompt
- Battery Saving
- Low Battery Prompt
- Wide/Narrow Selectable
- VOX
- Busy Channel Lock
- Squelch Level Selectable
- Programming Protection
| Frequency Range | 446MHz |
|---|---|
| Operating Temperature | -10ºC ~ +50ºC |
| Operating Voltage | DC 7.4V |
| Channel Capacity | 16 |
| Antenna | High Gain Antenna |
| Antenna impedance | 50Ω |
| Mode of Operation | Simplex or Semi-Duplex |
| Dimentions (W x H x D) | 136 x 60 x 40mm |
| Power | 0.5W |
| Modulation Type | 16KF 3E |
| Spurious Radiation | ≤7.5μV |
| Modulated Noise | -40dB |
| Modulation Distortion | <5% |
| Max Fr Deviationvv | ≤±5KHz |
| Adjacent CH. Power | ≥65dB |
| Intermediation Sensitivity | 8 – 12mv |
| Sensitivity | ≤0.2μV |
| Occupied Bandwidth | ≤16KHz |
| Selectivity | ≥65dB |
| Intermediation | ≥55dB |
| Audio Output | >500 mW |
| Audio Distortion | ≤5% |
| Frequency Stability | 5ppm |
| Current | 55mA (when standby), 150mA (when working) |
| Audio Response (300 – 3000 Hz) | +7 + 12.5dB |
| Reference Frequency | 13.000 MHz |
