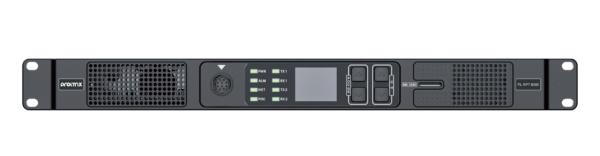

Prolynx – Analog/Digital/IP-Link Repeater – PL-RPT 8000
CFA 0
Key Features:
-
- Auto Channel Entry: Powers on directly to a preset channel.
- Sleep Mode: Configurable dormancy setting for power saving.
- Channel Retention: Adjustable channel hang time.
- Versatile Calling: Supports private, group, and all-call.
- Emergency Call: Dedicated feature for urgent communication.
- Messaging: Send/receive messages.
- Radio Check: Verify the status of another radio.
- Remote Monitor: Monitor another radio’s audio remotely.
- Radio Control: Remotely kill or activate radios.
- Secure Communication: Encryption for protected transmissions.
- Signal Filtering: CTCSS/DCS for unwanted signal filtering.
- Upgradeable: Supports firmware/software upgrades.
- Programming Protection: Safeguards against unauthorized changes.
- MIC Sensitivity Control: Adjustable MIC gain for microphone/repeater.
- Transmission Control: Includes TOT and transmission presets.
- Environmental Alerts: High-temp and unlock alarms.
- Bandwidth Options: 12.5/20/25kHz selection.
- Signal Management: Adjustable squelch and end-tone elimination.
- Analog Scan: Scans channels in analog mode.
| Frequency range | 400-470MHz |
|---|---|
| Channel capacity | 64 |
| Channel spacing | 12.5/20/25KHz |
| Current | DC≤1A AC ≤0.4A DC≤12A AC ≤1.5A (MAX High Power) |
| Frequency stability | ±1ppm |
| Antenna impedance | 50Ω |
| Working temperature | -30°C~+60°C |
| Storage temperature | -40°C~+85°C |
| ESD | IEC 61000-4-2 (Level 4) ±8kV (contact discharge) ±15kV (air discharge) |
| Adjacent channel selectivity | « TIA-603 60dB@12.5kHz 65dB@12.5kHz » « ETSI 70dB@20/25kHz 75dB@20/25kHz » |
| Spurious response rejection | 75dB@12.5/20/15kHz (TIA) 70dB@12.5/20/25kHz (ETSI) |
| Block | 90dB TIA 84dB (ETSI) |
| Signal to noise ratio | 40dB @ 12.5kHz 43dB @ 20kHz 45dB @ 25kHz |
| Receiving spurious emission | -57dB |
| Output power | 50W |
| FM modulation | 11KΦF3E @ 12.5KHz 14KΦF3E @ 20KHz 16KΦF3E @ 25KHz |
| 4FSK digital modulation | -36dBm<1GHz -30dBm>1GHz |
| Modulation limiting | ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz |
| FM noise | 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz |
| Adjacent channel power | 60dB @ 12.5kHz 70dB @ 20/25kHZ |
| Audio response | -1dB~-3dB |
| Rated audio distortion | ≤3% |
