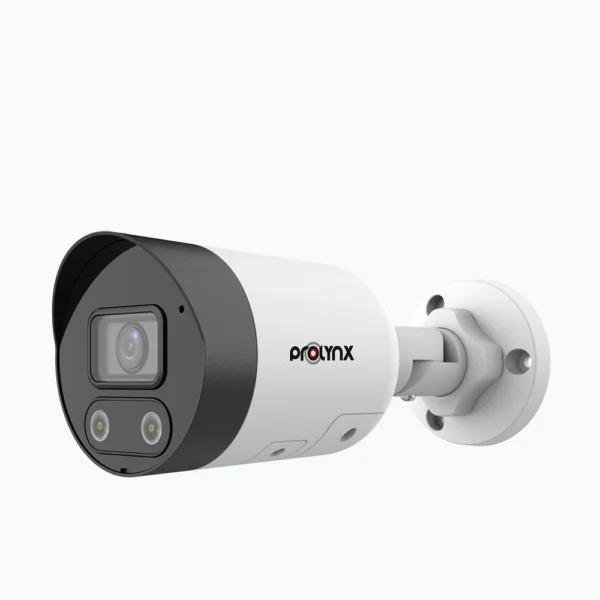

Prolynx – Caméra réseau Bullet fixe ColorVision 2 MP – PL-2NBC72
CFA 0
Key features
- High-quality image with a 2MP resolution and a 2.8/1″ CMOS sensor
- 2MP (1080*1920) @25/30fps; 720P (720*1280) @25/30fps;
- Supports Ultra 265, H.265, H.264, and MJPEG compression formats
- 120dB true WDR technology for clear images in strong light conditions
- Supports 9:16 Corridor Mode
- Smart IR with an effective range of up to 30 meters (98 feet)
- White light with an effective range of up to 30 meters (98 feet)
- Supports up to 128GB micro SD card
- IP67 protection rating
- 3-axis design for flexible mounting
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 2.8mm@F1.6 |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination | Colour: 0.002Lux ( F1.6, AGC ON) 0Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98ft) IR range |
| White Light Range | Up to 30m (98ft) white light range |
| WDR | 120dB |
| Noise Reduction | 2D/3D DNR |
| Behavior Detection | Cross line, intrusion(based on human body detection) motion detection, tampering alarm, audio detection |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 4 areas |
| Edge Storage | Micro SD, up to 128GB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Network | 10/100M Base-TX Ethernet |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W |
| Dimensions (L × W × H) | 191×75×74mm (7.5”×2.9”×2.9”) |
| Weight | 0.41kg (0.90lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
