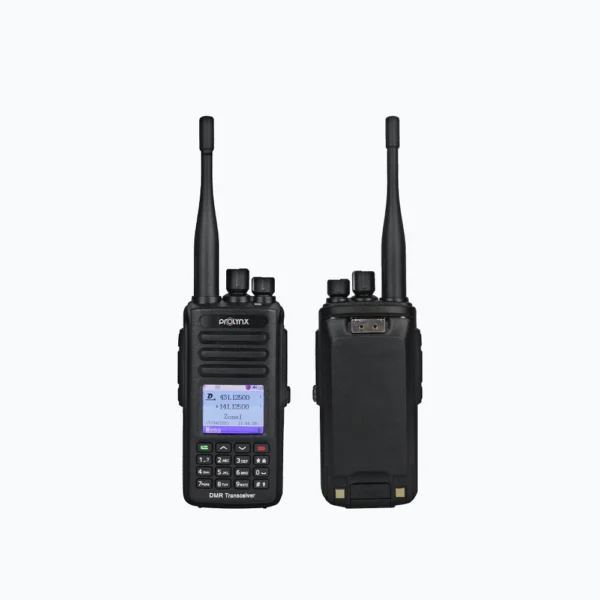

Prolynx – DMR Digital Radios – PL-DMR 220 WP
CFA 0
Key Features
- Frequency range-136-174 MHZ VHF & 400-480 MHZ UHF
- Dual Band,Dual Wait,Dual Standby
- Use Time-Division Multiple-Access
- (TOMA) digital function
- Dual time slot for repeater
- Dual time slot for point to point
- Firmware upgradeable
- Lone worker,Encryption function
- Compatible with Mototrbo Tier I & II
- Single call, group call and all call
- FM Features available,SMS functions
- Analog and digital combined
- Remote kill/stun and activate
- Comply with digital protocol ETSI TS 102 361-1,-2,-3
- Up to 3000 channels
- BATTERY WITH TYPE C-3200 Mah
- Transmit interruption,Group call match (Promiscuous)
- Private call match (Promiscuous),8 hours of recording
| Output power | High: 5w (HI) Low:1W (Low) |
|---|---|
| Adjacent Channel Power | -60dB |
| Free Time Slot Power | TDMA:57dBm |
| Human Noise | -40dB@125KHz |
| Spurious Radiation | Antenna:9KHz-1GHz ,s-36dBm 1GHz-12.75GHz ,s-30dBm |
| FM Modulation Mode | 12.5KHz: 11K0F3E |
| 4FSK Digital Mode | 12.SKHz(data only):7K60FXD 12.5KHz(data+voice):7K60FXW |
| Modulation Maximum Deviation | 2.5KHz@12.5KHz |
| Nonactive Slot Power | -57dBm |
| Digital Protocol | ETSI TS 102 361-1 -2 -3 |
| Vocoder Type | AMBE+2TM |
| Modulation BER(Bit Error Rate) | 5% |
| Analog sensibility | 0.2 μ V@12db SINAD |
| Digital Sensibility | 0.25uV(BER:5%) |
| Adjacent Channel Selectivity | -60dB@12.5KHz |
| Intermodulation | 60dB |
| Spurious Response | 0dB |
| Rated audio power | 1W |
| Audio response | =1dB–3dB |
| Rated audio distortion | <5% |
| FM Noise | 45dB@25KHz »’40dB@12.5KHz |
| Frequency range | 136-174 MHZ VHF & 400-480 MHZ UHF |
| Channel | 3000 Channels |
| Frequency Stability | ± 1ppm |
| Operating Voltage | 7.4VDC |
| Battery Type | Type C |
| Operating Temperature | -30’t+60’t |
| Channel Spacing | 12.5KHz |
| Antenna Impedance | 500 |
| Audio Output Power | 1000mW@16O |
| Battery Capacity | 3000 Mah |
| Dimension(H*W*D) | 131*61*36mm |
| Weight | 258g |
