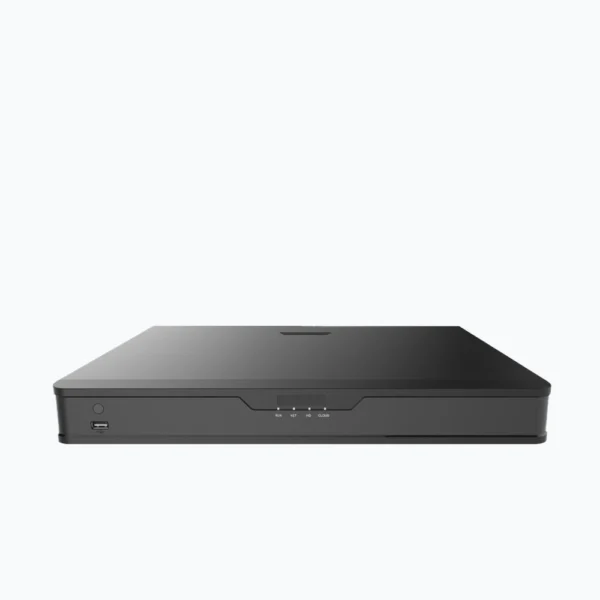

Prolynx – Network Video Recorder – PL-2NVR1316-16P
CFA 0
Key Features:
- Support Ultra 265/H.265/H.264 Video Formats
- 8/16-Channel input
- Plug & Play with 8/16 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 2 SATA HDD up to 10 TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Weight | 21 kg |
|---|---|
| Dimensions | 75 × 73 × 193 cm |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Incoming Bandwidth | 112Mbps |
| Outgoing Bandwidth | 96Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| HDMI/VGA Output | HDMI: 4K(3840×2160)/30Hz, 4K(3840×2160)/60Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Compression | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Capability | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1 |
| SATA | 2 SATA interface |
| Capacity | up to 10 TB for each disk |
| VCA Detection | Face detection, Intrusion Detection, Cross line detection, Audio Detection, Defocus Detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior Search |
| Statistical Analysis | People Counting |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear Panel: 1 x USB2.0, Front Panel: 1 x USB2.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Interface | 16 Independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for Single Port Max 240W in total ( 15W for each) |
| Supported Standard | IEEE 802.3af/at |
| Power Supply | 220V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10 ºC ~ + 55 ºC ( +14 ºF ~ +131 ºF ), Humidity ≤ 90% RH (non-condensing) |
| Dimension ( WxDxH ) | 380mm x 315mm x 53mm (15.0” x 12.4” x 2.1”) |
| Wieght (without HDD) | ≤ 2.4 Kg ( 5.29 lb) |
