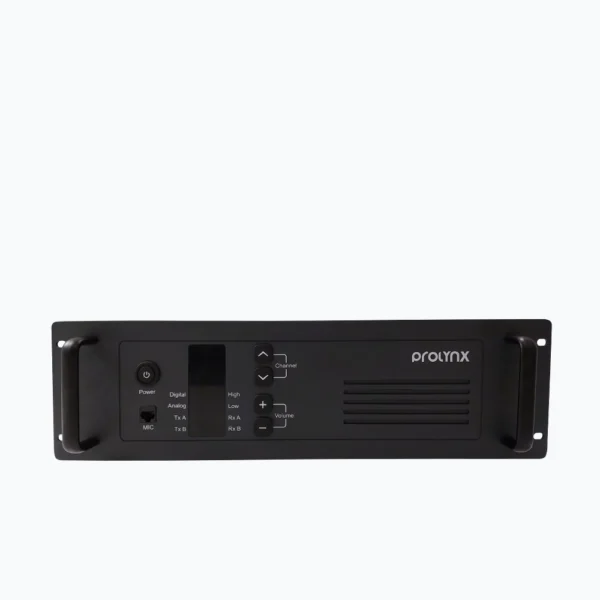

Prolynx – UHF/VHF Repeater – PL-RPT5000
CFA 0
Key Features:
- 16 Channels
- Frequency for repeater: 400-470MHz (UHF)
| Frequency Range | 400-490MHz |
|---|---|
| Channel Capacity | 100 |
| Frequency Stability | 2.5ppm |
| Channel Spacing | 12.5KHz/25KHz |
| Operating Temperature | -30~+60t |
| Operating Voltage | 13.6V DC, 20% AC 100-250V 5060Hz |
| Dimension | 133mm x 483mm x 330mm |
| Weight | 16kg |
| RF Power Output | 50W |
| Frequency modulation | 16K3E/11K3E(Analog) 4FSK(Digital) |
| Antenna Impedance | 50Ω |
| Modulation Limiting | ±2.5KHz@12.5KHz, ±5KHz@25KHz |
| Radiated Spurious Emission | -36dBm<1GHz -30dBm>1GHz |
| Modulation Distortion | ≤3% |
| Digital protocol | ETSI-TS102 361-1, -2, -3 |
| Reference Sensitivity (Analog) | 0.35μV/-116dBm. (12 dB SINAD) 0.22μV/-120dBm(Type) |
| Reference Sensitivity (Digital) | 0.22μV/-120dBm 0.35μV/-116dBm |
| Adjacent channel Selectivity ETSI | 60dB@12.5KHz 75dB@20/25KHz |
| Inter-modulation ETSI | 75dB |
| Spurious Response Rejection | 70dB |
| Rated Audio Output | 0.5W |
| FM Noise | 45dB@25KHz 40dB@12.5KHz |
| Rated Audio Distortion | ≤3% |
