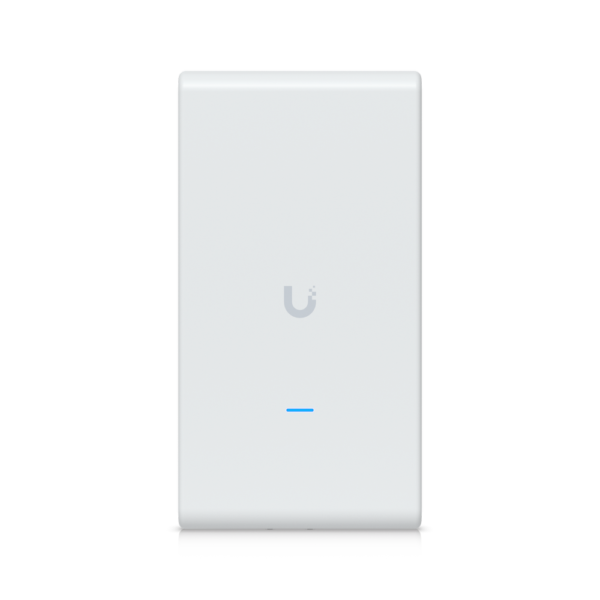

UniFi U6 Mesh Pro Dual-Band Indoor/Outdoor Wi-Fi 6 Access Point
CFA 0
Key Features:
- WiFi 6 (802.11ax) Support: Enhanced speed and capacity, with data rates up to 2.4 Gbps on 5 GHz (BW160) and 573.5 Mbps on 2.4 GHz.
- Dual-Band Coverage: Optimized for both 2.4 GHz and 5 GHz frequencies for faster, more reliable performance.
- High Antenna Gain: 8 dBi antennas for extended range and reliable connectivity.
- Power over Ethernet (PoE): Simplifies installation with UniFi PoE switch or included PoE adapter.
- Weatherproof Design: IPX6 rated for outdoor use in harsh weather conditions.
- MIMO Technology: 2 x 2 MU-MIMO for better device handling and network efficiency.
- High Client Capacity: Supports over 350 concurrent clients for large network environments.
- Flexible Mounting: Wall and pole mounting options included.
- Advanced Security: WPA3 support for the latest wireless security, alongside WPA2 and WPA-PSK.
- Certified: CE, FCC, and IC certified for global compatibility.
| Mechanical: | – |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″) |
| Weight | 819 g (1.8 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Aluminum alloy, steel |
| Pole mount diameter | 1~2.5″ on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware: | – |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet WiFi |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included) |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 9W |
| Max. TX power | 2.4 GHz – 22 dBm 5 GHz – 27 dBm 6 GHz – |
| MIMO | 2.4 GHz – 2 x 2 (DL/UL MU MIMO) 5 GHz – 2 x 2 (DL/UL MU-MIMO) 6 GHz – |
| Max. data rate | 2.4 GHz – 573.5 Mbps (BW40) 5 GHz – 2.4 Gbps (BW160) 6 GHz – |
| Antenna gain | 2.4 GHz – 8 dBi 5 GHz – 8 dBi 6 GHz – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software: | – |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Supported Data Rates: | – |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15 , HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| Application Requirements: | – |
| UniFi Network | Version 8.1.127 and later |
