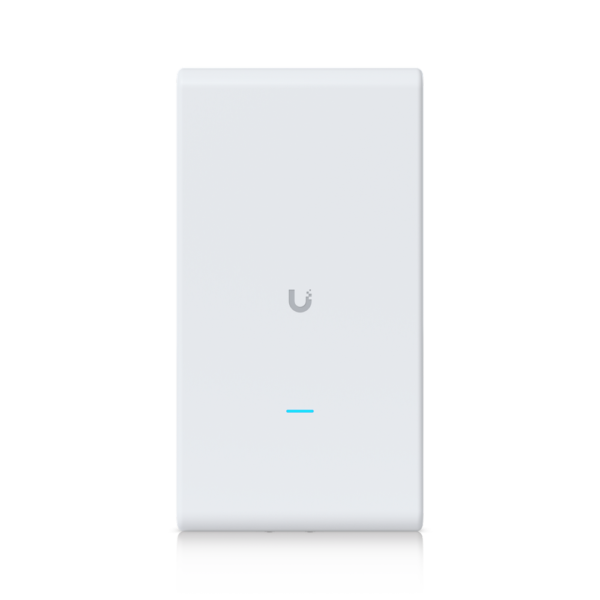

Unifi UAP-AC-M-PRO – Radio access point
CFA 0
Key Features:
- High-Speed WiFi: Dual-band support (2.4 GHz and 5 GHz) with speeds up to 1.3 Gbps.
- Optimized for Mesh Networking: Ideal for expanding WiFi coverage in larger spaces or challenging environments.
- Power over Ethernet (PoE): Simplifies installation with Gigabit PoE support.
- Wide Temperature Range: Operates in extreme conditions (-40°C to 70°C), making it perfect for outdoor use.
- High Antenna Gain: 8 dBi antennas for improved range and coverage.
- Flexible Mounting Options: Can be mounted on walls or poles for versatile placement.
- Advanced Security: Supports WPA, WPA2 encryption, and advanced QoS for optimized traffic management.
- Reliable Performance: Can handle over 250 concurrent clients with excellent network efficiency.
- Certified: CE, FCC, and IC certifications for global compliance.
| Mechanical: | – |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″) |
| Weight | 633 g (1.4 lb) |
| Hardware: | – |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | Gigabit PoE adapter 48V DC, 0.5A* *5-packs do not come with PoE adapters. |
| Max. power consumption | 9W |
| Max. TX power | 2.4 GHz – 22 dBm 5 GHz – 22 dBm 6 GHz – |
| MIMO | 2.4 GHz – 3 x 3 (DL MU-MIMO) 5 GHz – 3 x 3 (DL MU-MIMO) 6 GHz – |
| Max. data rate | 2.4 GHz – 450 Mbps (BW40) 5 GHz – 1.3 Gbps (BW80) 6 GHz – – |
| Antenna gain | 2.4 GHz – 8 dBi 5 GHz – 8 dBi 6 GHz – |
| Button | Factory reset |
| Mounting | Wall, pole (Included) |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software: | – |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| VLAN | 802.1Q |
| BSSID | Up to 4 per radio |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps): | – |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.3 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
